Wet room doors

Wet room doors

Design according to DIN 68706 part 1:

The doors with a thickness of approx. 40 mm are made of multi-layer composite panels. These are suitable for use in rooms with constant humidity and increased splashing water.

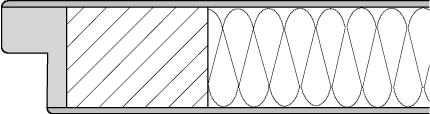

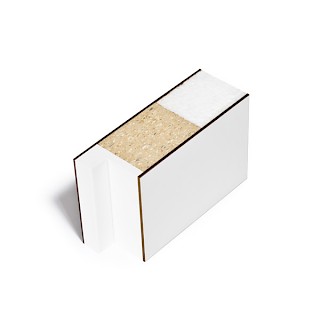

Objekt

Frame:

4–sided PU frame approx. 50 mm made of PU recycling plates, 100 % water resistant

Inner layer:

36 mm solid plastic rigid foam

Topcoat:

2.0 mm high pressure laminate according to DIN EN 438, waterproof gluing with 2-comp. adhesive

Edges:

Blunt or with standard rebate according to DIN 18101, 3-sided solid plastic frame can be replaned (colours: white, grey, black, beige or ivory)

Edging band drilling / milling and lock milling always included in the door panel price!
Door leaf can be shortened up to 30 mm, also with special sized doors!
Also available as a sliding or double-action door at the same price.
Stress group M ●
Stress group S ●
Stress group E ●
Climate class I ∎
Climate class II ●
Climate class III ●
Sound insulation I (RW, P32dB) ●
Sound insulation II (RW, P37dB) ●
Sound insulation III (RW, P42dB) ●
Sound insulation ●
Class S frame reinforcement ●
Reinforcement for overhead door closer, handles and stopper ●
4-sided solid plastic frame ●
Ventilation grille, special milling ●
Light cut-outs/ Portholes ●
Double sealing ●
Lock milling ∎
Milling / Drilling edging bands ∎
3rd edging band milling / drilling ●
2nd lock milling ●
Special milling e.g. integrated door closers / 3-fold locking etc. ●
Lead inserts for X-ray rooms ●
Door thickness 50 mm / 70 mm ●
Seam revealed ●
Double rebate (from door thickness 50mm) ●
Top panel ●
Door leaf with or without edge
  • Max. door height 3.900mm, max. door width 1.480mm (depending on laminate or HPL availability with or without joint line)
  • ∎ Standard    ● Optional
ZAK Nassraumtüren - Objekt

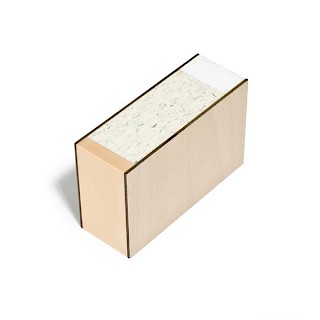

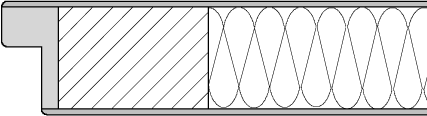

K 42 T

Frame:

4–sided PU frame approx. 80 mm made of PU recycling plates, 100 % water resistant

Inner layer:

36 mm solid plastic rigid foam

Topcoat:

2.0 mm high pressure laminate according to DIN EN 438, waterproof gluing with 2-comp. adhesive

Edges:

Blunt or with standard rebate, to DIN 18101, 3-sided solid plastic frame can be replaned (colours, white, grey, black, beige or ivory)

Edging band drilling / milling and lock milling always included in the door panel price!
Door leaf can be shortened up to 30 mm, also with special sized doors!
Also available as a sliding or double-action door at the same price.
Stress group M ●
Stress group S ∎
Stress group E ●
Climate class I ∎
Climate class II ●
Climate class III ●
Sound insulation I (RW, P32dB) ●
Sound insulation II (RW, P37dB) ●
Sound insulation III (RW, P42dB) ●
Sound insulation ●
Class S frame reinforcement ●
Reinforcement for overhead door closer, handles and stopper ●
4-sided solid plastic frame ●
Ventilation grille, special milling ●
Light cut-outs/ Portholes ●
Double sealing ●
Lock milling ∎
Milling / Drilling edging bands ∎
3rd edging band milling / drilling ●
2nd lock milling ●
Special milling e.g. integrated door closers / 3-fold locking etc. ●
Lead inserts for X-ray rooms ●
Door thickness 50 mm / 70 mm ●
Seam revealed ●
Double rebate (from door thickness 50mm) ●
Top panel ●
Door leaf with or without edge
  • Max. door height 3.900mm, max. door width 1.480mm (depending on laminate or HPL availability with or without joint line)
  • ∎ Standard    ● Optional
ZAK Nassraumtüren - K 42 T

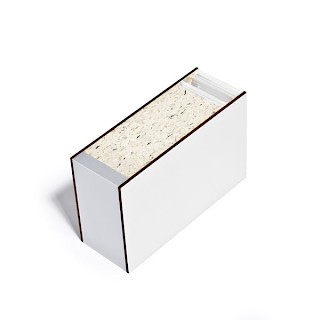

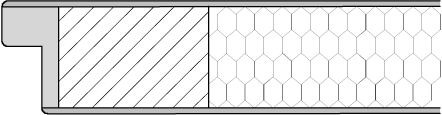

Profi Comb

Frame:

4-sided PU frame approx. 80 mm made of PU recycling plates, 100 % water resistant

Inner layer:

36 mm solid plastic honeycomb core

Topcoat:

2.0 mm high pressure laminate according to DIN EN 438, waterproof gluing with 2-comp. adhesive

Edges:

Blunt or with standard rebate according to DIN 18101, 4-sided solid plastic frame can be replaned (colours: white, grey, black, beige or ivory)

Edging band drilling / milling and lock milling always included in the door panel price!
Door leaf can be shortened up to 30 mm, also with special sized doors!
Also available as a sliding or double-action door at the same price.
Stress group M ∎
Stress group S ∎
Stress group E ●
Climate class I ∎
Climate class II ∎
Climate class III ●
Sound insulation I (RW, P32dB) ●
Sound insulation II (RW, P37dB) ●
Sound insulation III (RW, P42dB) ●
Sound insulation ●
Class S frame reinforcement ●
Reinforcement for overhead door closer, handles and stopper ●
4-sided solid plastic frame ∎
Ventilation grille, special milling ●
Light cut-outs/ Portholes ●
Double sealing ●
Lock milling ∎
Milling / Drilling edging bands ∎
3rd edging band milling / drilling ●
2nd lock milling ●
Special milling e.g. integrated door closers / 3-fold locking etc. ●
Lead inserts for X-ray rooms ●
Door thickness 50 mm / 70 mm ●
Seam revealed ●
Double rebate (from door thickness 50mm) ●
Top panel ●
Door leaf with or without edge
  • Max. door height 3.900mm, max. door width 1.480mm (depending on laminate or HPL availability with or without joint line
  • ∎ Standard    ● Optional
ZAK Nassraumtüren - Profi Comb
